A Limited Collection of Piano Rebuilding Photos
A few of the many procedures in a complete rebuild
1913 5' 4" Knabe Grand Piano
Courtesy of Gene Nelson RPT (all rights reserved) |

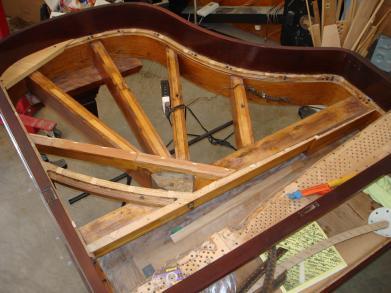

Piano case being prepared for new soundboard |
![](gallery/case_for_board.jpg) |

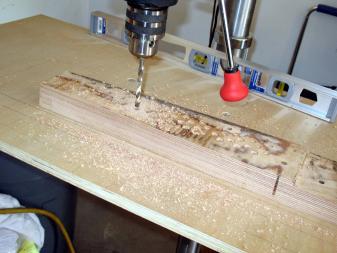

New tuning pinbloack being drilled |
![](gallery/drill_block.jpg) |

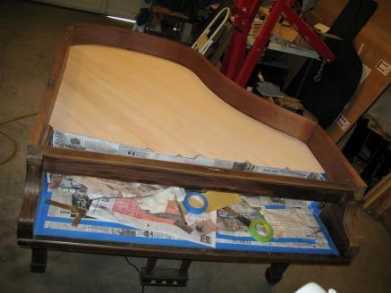

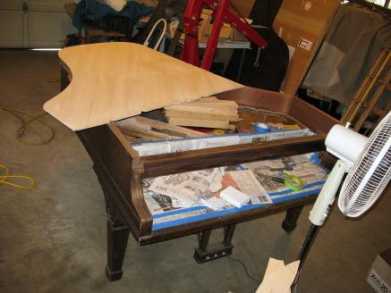

Fitting the new soundboard panel to the case |
![](gallery/fitting_board1.jpg) |
Another image of fitting the new soundboard panel to the case |
![](gallery/fitting_board.jpg) |

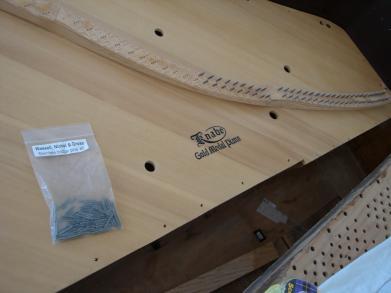

Installing bridge pins |
![](gallery/bridge_pins2.jpg) |

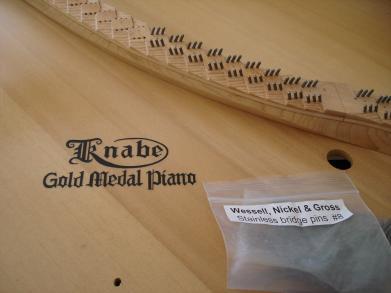

Another image of installing bridge pins |
![](gallery/bridge_pins.jpg) |

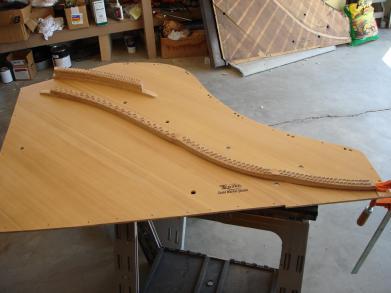

The completed new soundboard and bridges |
![](gallery/new_board_bridge.jpg) |

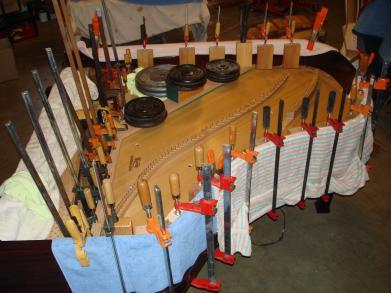

Glueing in the new soundboard |
![](gallery/board_glue_in.jpg) |

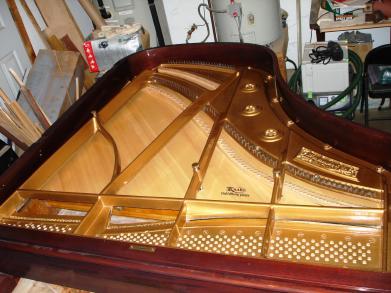

Soundboard and plate (harp) are now installed and the piano is ready
for stringing |
![](gallery/string_ready.jpg) |

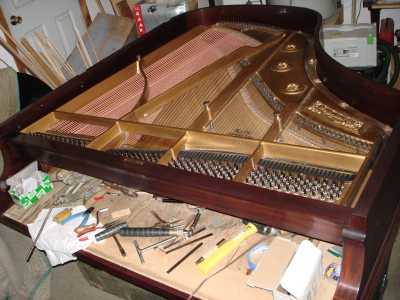

Installing new strings on the piano has been completed |
![](gallery/restrung.jpg) |

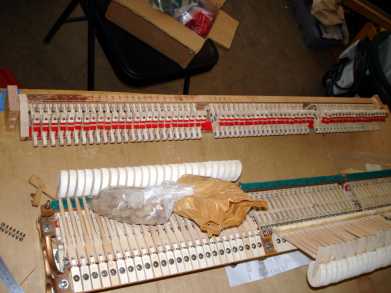

New damper underlever assembly (aft) and action stack with new action
parts and hammers. |
![](gallery/ba1.jpg) |
Another view of the new damper underlever assembly (backaction) with
the action stack in the background |
![](gallery/ba2.jpg) |

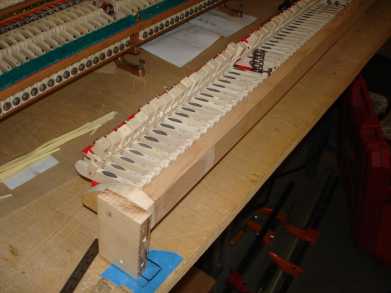

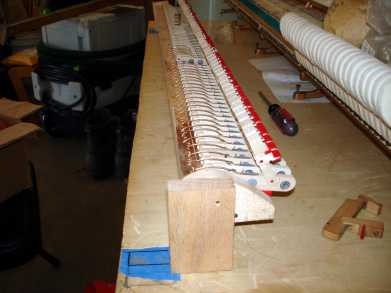

Final view of of the new damper underlever assembly (backaction) after
installation of the return springs (note old underlever part at lower right) |
![](gallery/ba3.jpg) |

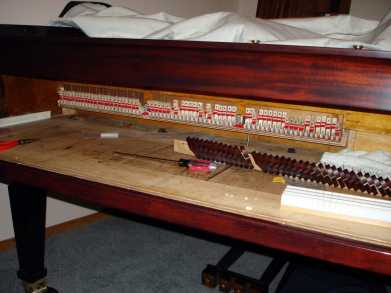

Installing the new damper underlevers assembly (backaction) in the piano |
![](gallery/ba4.jpg) |

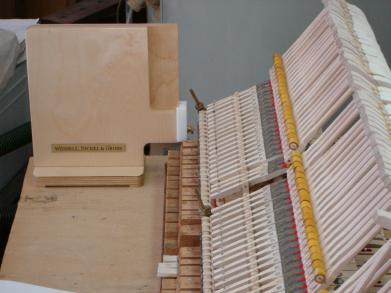

Installing new backchecks |
![](gallery/check_install.jpg) |

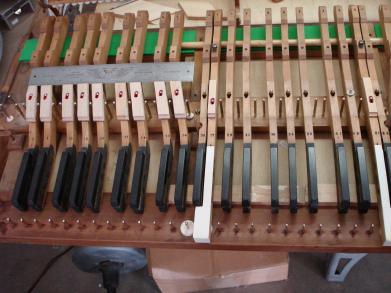

Installing new key buttons |
![](gallery/key_buttons.jpg) |

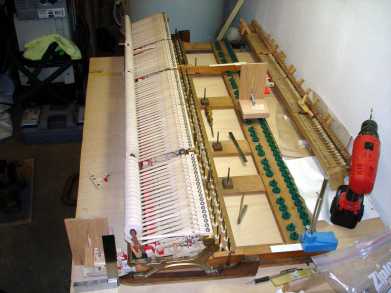

Action stack with new actions parts and hammers on the keyframe without
the keys |
![](gallery/stack_frame.jpg) |

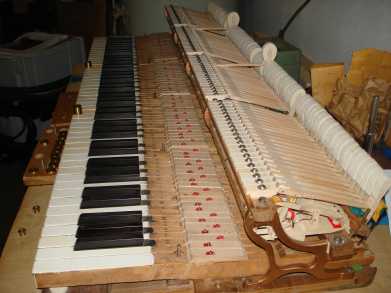

Side view of complete rebuilt piano action |
![](gallery/action_side.jpg) |

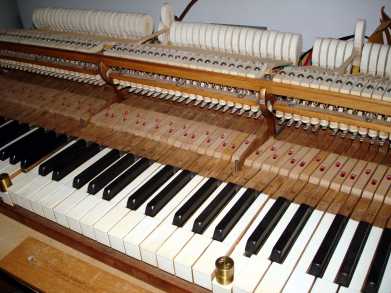

Front view of complete rebuilt action evaluating touch weight, key weight,
or down weight |
![](gallery/action_weigh.jpg) |

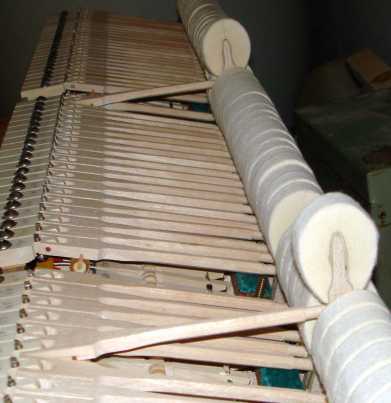

Side view of new hammers and hammer shanks |
![](gallery/hammers.jpg) |
Dampers with new damper felt are being installed |
![](gallery/damper_install.jpg) |

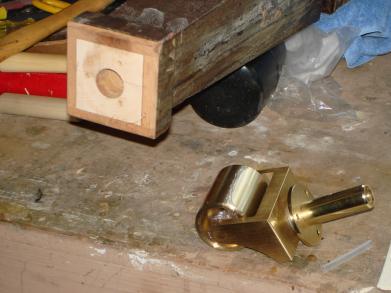

Installing new casters |
![](gallery/new_caster.jpg) |
|
|
